100% Original Factory Galvanized Steel Wire Rope Manufacturer - Galvanized steel wire rope – Bangyi Detail:

Product Description

Galvanized steel wire rope is constructed of galvanized wires which are dipped in the tank containing molten zinc to form a thick layer of zinc coating before the wire is drawing through dies. Then these galvanized wires are drawn to reduce diameter and increase tensile strength. At the same time, zinc coating bonding to steel wires is compressed to form a more excellent layer to protect the steel form corroding.

Galvanized steel wire rope is divided into two categories: cold galvanized steel wire rope and hot-dip galvanized steel wire rope. Hot-dip galvanizing and cold-dip galvanizing have this essential difference in the process. Hot-dip galvanizing relies on physical thermal diffusion to form a coating. First, iron-zinc compounds are formed, and then a pure zinc layer is formed on the surface of the iron-zinc compounds. The essential difference between hot-dip galvanized steel wire rope and cold-dip galvanized steel wire rope is that the zinc layer of hot-dip galvanized steel has better corrosion resistance due to the zinc-iron alloy layer than cold galvanized steel. The surface condition of the hot-dip galvanized steel wire rope is blackened because of the hot-dip galvanized iron alloy. The electroplated surface has no chemical reaction, so it is still the original color of zinc, which looks brighter. In general, the zinc layer of hot-dip galvanizing is thicker, and the corrosion resistance is better. The zinc layer of electro-galvanized zinc is thinner and has poorer corrosion resistance. (Unless the zinc layer of cold galvanizing also reaches the level of thick zinc layer)

Galvanized steel wire rope can be used in high-level construction, blockade, fence, clothesline, vehicle and ship binding, towing, strapping and other fields; used in shipping, offshore oil exploration, aircraft manipulation, marine fishing, trawling, fixed net, roll net and other fisheries .

Production Process

1

2 (1)

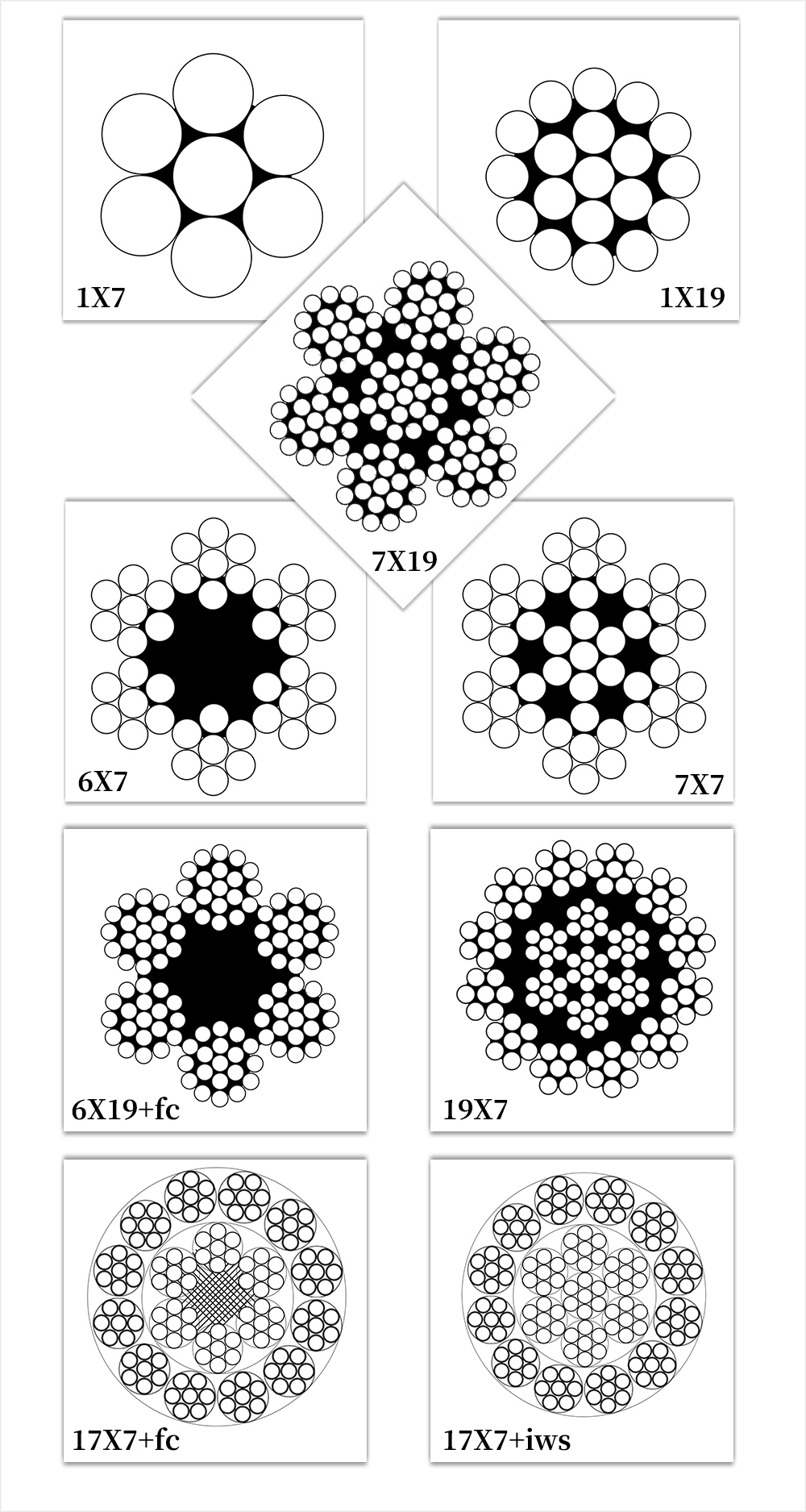

Structure chart


2 (2)

Structure chart

Specification

Structure

1*7,7*7（6*7+FC, 6*7+IWS,6*7+IWRC）, 1*19,7*19(6*19+FC,6*19+IWS,6*19+IWRC),19*7, etc.

Diameter

0.3mm –12mm

Material

Carbon steel 45#,55#,60#,70#

Standard

DIN, EN, ABS, BS, JIS, LR etc.

T/S

1570-1960Mpa

Tolerance

±3%

Diameter

(mm)

Approx weight

(kg/100m)

Min. Breaking Load

(Kn)

1*7

0.30

0.05

0.098

0.40

0.08

0.176

0.50

0.13

0.284

0.60

0.18

0.402

0.80

0.32

0.705

1.00

0.50

1.078

1.20

0.72

1.520

1.40

0.98

2.060

1.50

1.13

2.350

1.60

1.28

2.650

1.80

1.62

3.330

2.00

2.0

4.120

1*19

0.80

0.32

0.686

1.00

0.50

1.030

1.20

0.72

1.470

1.50

1.12

2.450

1.60

1.27

2.740

1.80

1.61

3.330

2.00

2.00

4.170

2.50

3.10

6.520

3.00

4.50

8.330

3.50

6.13

10.80

4.00

8.00

13.70



Diameter

Approx weight

Min. Breaking Load

(mm)

(kg/100m)

1570Kn/mm2

1770Kn/mm2

1960Kn/mm2

7*7

0.36

0.05

0.079

0.089

0.097

0.45

0.08

0.124

0.140

0.151

0.50

0.10

0.153

0.172

0.186

0.60

0.15

0.220

0.248

0.268

0.80

0.26

0.390

0.440

0.477

0.90

0.33

0.495

0.560

0.600

1.00

0.41

0.610

0.690

0.760

1.20

0.58

0.880

0.990

1.100

1.50

0.91

1.370

1.550

1.710

1.80

1.32

1.970

2.230

2.460

2.00

1.62

2.440

2.540

2.810

2.20

1.97

2.960

3.300

3.510

2.50

2.54

3.810

4.290

4.750

3.00

3.65

5.480

5.720

6.330

4.00

6.50

9.750

10.200

11.300

5.00

10.15

15.230

15.900

17.600

6.00

14.62

21.900

22.900

–

8.00

25.98

39.000

40.700

–

10.00

40.60

60.900

63.500

–

12.00

58.46

87.700

91.500

–

7*19

1.50

0.92

1.26

1.43

1.58

1.80

1.32

1.82

2.05

2.27

2.00

1.63

2.27

2.56

2.81

2.20

1.98

2.72

3.06

3.39

2.50

2.55

3.55

4.00

4.43

3.00

3.68

5.12

5.77

6.39

4.00

6.53

9.09

10.25

11.35

5.00

10.21

14.21

16.02

17.74

6.00

14.70

20.50

23.10

25.50

8.00

26.14

36.40

41.00

45.40

10.00

40.84

56.80

64.10

71.00

12.00

58.81

81.80

92.30

–

Uses

1. Security seals.

2. Towing, pulling, strapping.

3. Fence, greenhouse, door pipe,green house.

4. Low pressure liquid, water, gas, oil, line pipe.

5. For both indoor and outdoor the building construction.

6. Widely used in scaffolding construction which is much cheaper and convenient.

Packing

Packing: Wooden reel, iron reel, plastic reel, flexible reel,custom packaging.

Shipping: We support international express for your sample order: Like TNT, DHL, FedEx, UPS, EMS, etc. We shipping the bulk order by Sea, by train, etc.

Produce time: Within 3-15 working days.
