China Wholesale China Galvanized Steel Strand Manufacturers Suppliers - 19×7 high tensile steel wire cable galvanized steel wire rope for crane – Bangyi

Short Description:

Send email to us

Product Detail

Product Tags

Feedback (2)

Our business puts emphasis over the administration, the introduction of talented staff, plus the construction of team building, attempting hard to boost the standard and liability consciousness of personnel customers. Our corporation successfully attained IS9001 Certification and European CE Certification of Stainless Wire Rope 7x7, 316 Stainless Steel Cable, China Manufacture 7x7 Plastic Pvc Coated Steel Wire Rope, By 10 years effort, we attract customers by competitive price and excellent service. Moreover, it's our honest and sincerity, which help us always be clients' first choice.

China Wholesale China Galvanized Steel Strand Manufacturers Suppliers - 19×7 high tensile steel wire cable galvanized steel wire rope for crane – Bangyi Detail:

Parameter

Item	19*7 Galvanized steel wire rope
Material	45# 55# 60# 70# carbon steel; Inner core: hemp core/PP core/ cotton core
Contruction	19*7
Diameter	3mm, 4mm,5 mm, 6mm, 7mm, 8mm, 9mm,10mm, 11mm, 12mm
Surface treatment	Hot-Dip galvanized/ electric galvanized
Package	Packing in coil, wooden reel, plastic reel; Or cut into customized length; Other customized package
Application	Good softness, suitable for traction, pulling, strapping, etc.

Product Description

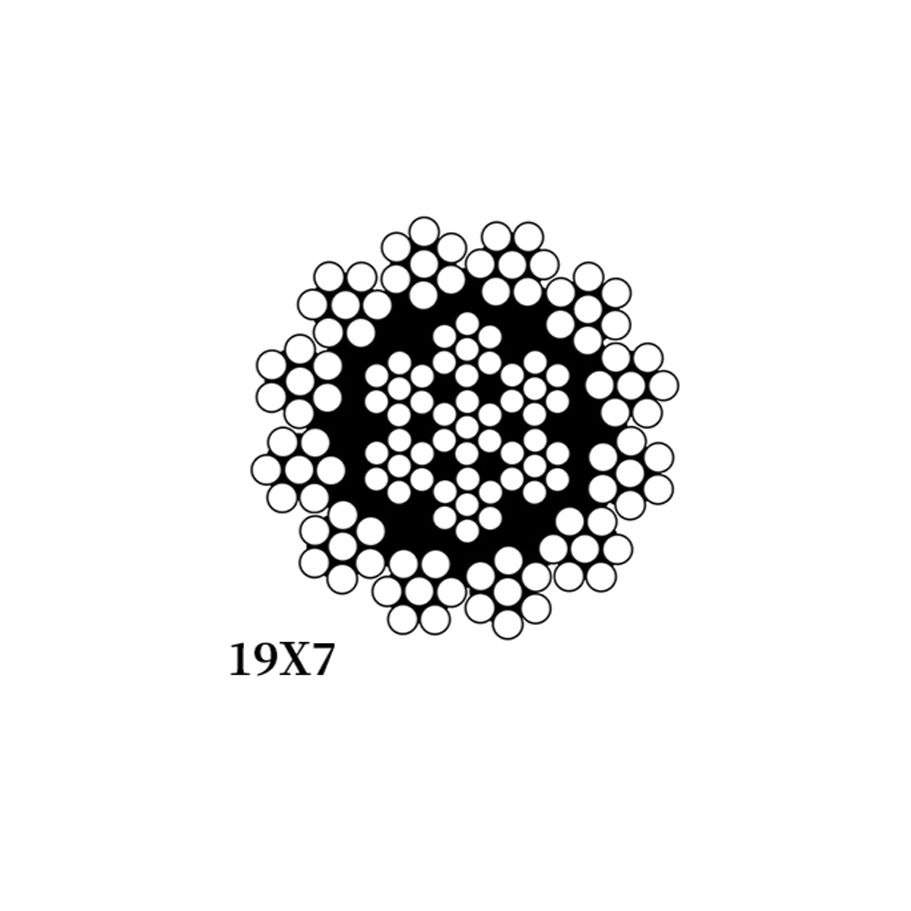

19×7 Galvanized Steel Wire Rope
	Diameter (MM)	Min. Breaking Load (KN)	Approx. Weight KG/100M
	6	20.9	14.5
	7	28.5	19.7
	8	37.2	25.7
	9	47.0	32.6
	10	58.1	40.2
	11	70.3	48.6
	12	83.6	57.9
	13	98.1	67.9
	14	114	78.8
	16	149	103

19×7 high tensile steel wire cable galvanized steel wire rope

1.galvanized stainless steel cable/stay wire

1)BWG8-BWG30 (0.305mm-4.191mm)

2)Processing with low carbon steel wire, through drawing and electric galvanizing

3)Standard wire gauge from 8 BWG to 26BWG

2.Technical Information

Steel Strand Wire
1)Material: super carbon steel
2)Processing by drawing, hot-dipped galvanizing
3)Standard wire gauge from 8BWG to 30BWG
4)Thick zinc-coating layer
5)Super in corrosion resistance
6)Firm coating layer
7)Custom size available
galvanized steel stay wire

1)Material: super carbon steel
2)Processing by drawing, hot-dipped galvanizing

3)Standard wire gauge from 8BWG to 30BWG
4)Thick zinc-coating layer
5)Super in corrosion resistance
6)Firm coating layer
7)Custom size available

3. Usage of galvanized steel stay wire

Galvanized wire is used for weaving of wire mesh, stranded conductors in overhead power circuitry,

19x7镀锌详情页_07
19x7镀锌详情页_04
19x7镀锌详情页_05
19x7镀锌详情页_02

Application

19x7镀锌详情页_06

Packing & Delivery

PACKING
(1) steel wire ropes will be wrapped in wooden reel or plastic reel, then with plastic film
(2) put on pallets or in wooden case.
(3) packing as your requirements.
DELIVERY
We support international express for your sample order: Like TNT, DHL, FedEx, UPS, EMS, etc.
We shipping the bulk order by Sea, by train, etc.
Produce time: 7-15 working days

Related Products

rel 001

Our Service

1. As a manufacturer, we are a company integrating factory production with trade and sales.
2. We have a history of more than ten years. In addition, we have a mature sales system, which can provide professional services to our customers.
3. Our company has passed ISO ,CE, SGS .
4. We can design and manufacture products according to the required size and specifications according to the needs of different customers.
5. We accept custom logo printing.

Factory Show

详情页_08
012
009

Product detail pictures:

Related Product Guide:

Assume full responsibility to satisfy all needs of our clients; achieve continual advancements by endorsing the expansion of our purchasers; turn into the final permanent cooperative partner of clientele and maximize the interests of clients for China Wholesale China Galvanized Steel Strand Manufacturers Suppliers - 19×7 high tensile steel wire cable galvanized steel wire rope for crane – Bangyi , The product will supply to all over the world, such as: US, Luxemburg, Lyon, So far our merchandise have been exported to east Europe, the Middle East, Southeast, Africa and South America etc. We have now 13years experienced sales and purchase in Isuzu parts at home and abroad and the ownership of the modernized electronic Isuzu parts checking systems. We honor our core principal of Honesty in business, priority in service and will do our best to provide our customers with high quality items and excellent service.

China Galvanized Steel Cable
