Quality Inspection for Wholesale Steel Galvanized Cable - Steel wire rope with fiber core – Bangyi Detail:

Product Description

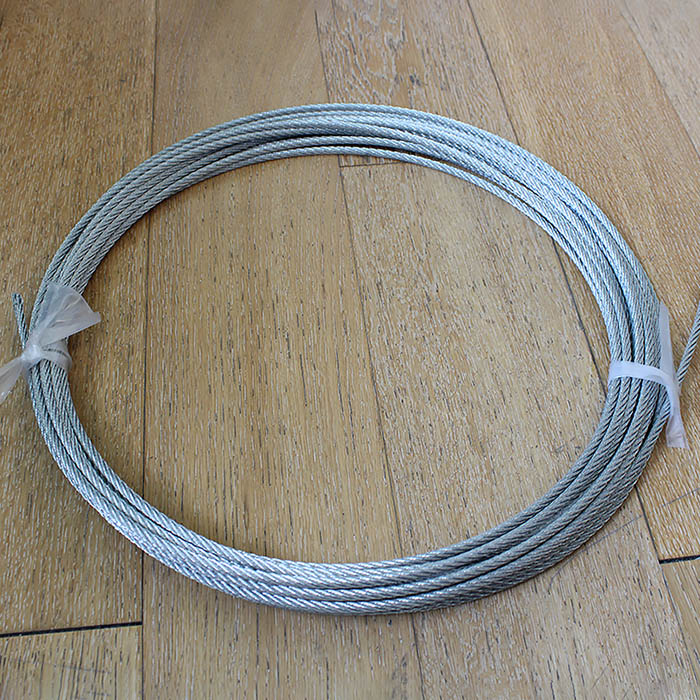

Fiber Core steel wire rope is composed of a fiber core in the middle of the steel wire rope. It is represented by FC.

Compared with metal core steel wire rope, fiber core steel wire rope has the characteristics of softness, corrosion resistance and more oil storage.

There are 2 types of Fiber core : Natural fiber core and Synthetic fiber core.

Natural core steel wire ropes use natural fiber rope cores such as jute, sisal, etc. This kind of rope core has a lot of oil storage, the steel wire rope is soft and not resistant to corrosion;

Synthetic core steel wire rope is a fiber core made of chemical synthetic materials, such as polyethylene, polypropylene, nylon, etc. This kind of rope core has less oil storage, and the steel wire rope is hard and corrosion resistant.

What is the difference between a steel core and a fiber core

1. The steel core wire rope of the same diameter has a larger breaking force than a fiber core wire rope, and the load it bears is also larger;

2. The steel core wire rope has better impact resistance and pressure resistance than the fiber core wire rope. The steel core wire rope is suitable for multi-layer winding;

3. Steel core wire rope is higher than fiber core wire rope in terms of high temperature resistance. Steel core wire rope is generally selected for high temperature occasions;

4. The fiber core wire rope is softer than the steel core wire rope;

5. The lubrication of fiber-core steel wire rope is better than steel-core steel wire rope for storing oil.

Specification

Name	Steel wire rope with Fiber Core
Diameter	0.3-12mm,etc
Construction	67+FC, 619+FC,etc.
Length	500 mm/reel, 1000 mm/reel, 2000 mm/reel , or as your requirements
Material	Carbon steel, hemp core/cotton core/PP core
tensile strength	1470,1570,1670,1770,1870,1960,2160MPA
Surface treatment	Electro-galvanizing, or hot-dip galvanizing

Structure	Nominal Diameter	Nominal T/S	Minimum B/L	Cross Section	Approximate Weight
	mm	Mpa	KN	mm²	kg/100m
	5.40	1670	20.35	13.85	13.80
6×7+FC	1.80	1960	2.28	1.32	1.40
	2.15	1960	3.28	1.90	2.00
	2.50	1960	4.47	2.59	2.70
	3.05	1870	6.27	3.81	4.00
	3.60	1870	8.69	5.28	5.50
	4.10	1770	10.40	6.68	7.00
	4.50	1770	12.85	8.25	8.70
	5.40	1670	17.46	11.88	12.50

6×7+FC

6×19+FC
