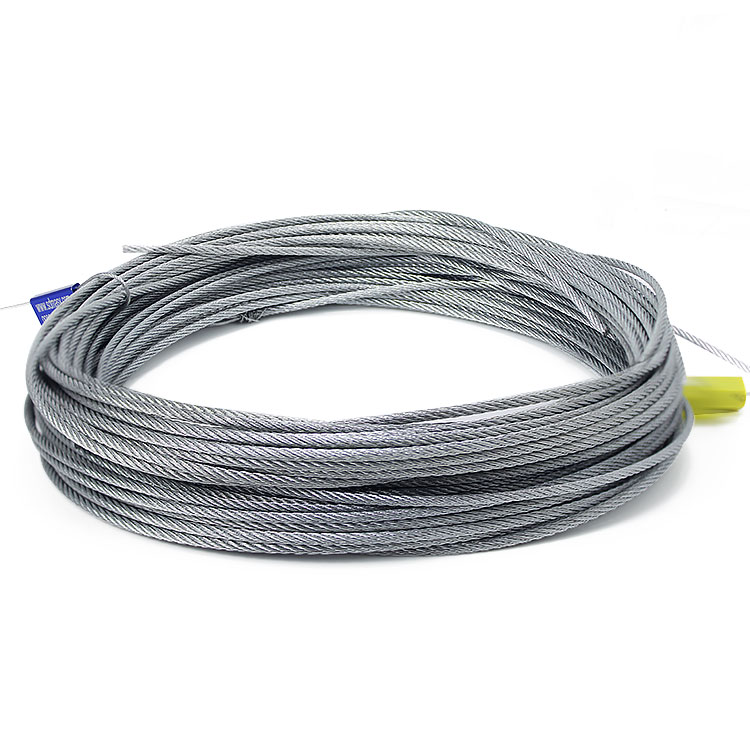

Wholesale price China Steel Wire Rope, Non-Rotating Galvanized Wire Rope

Short Description:

Factory direct galvanized steel wire rope Comprehensive specifications, durable, easy to install, not easy to rust Comfortable, smooth and burr-free: Exquisite workmanship, layered quality inspection, to ensure a good product experience for users

FOB Price: US $0.05 - 0.25 / Meter

Min.Order Quantity: 10000 Meters

Supply Ability: 100000 Meters Per Week

Package: coil, wooden reel, plastic reel, iron reel, pp bag

Send email to us

Product Detail

Product Tags

With our leading technology at the same time as our spirit of innovation,mutual cooperation, benefits and growth, we’re going to build a prosperous future together with your esteemed firm for Wholesale price China Steel Wire Rope, Non-Rotating Galvanized Wire Rope, We’re going to provide high-quality merchandise and excellent products and services at competitive costs. Start benefiting from our comprehensive products and services by contacting us today.
With our leading technology at the same time as our spirit of innovation,mutual cooperation, benefits and growth, we’re going to build a prosperous future together with your esteemed firm for China Wire Rope, Steel Wire Rope, We have been increasingly expanding our international market share based on quality merchandise, excellent service, reasonable price and timely delivery. Remember to contact us at any time for more information.

Product Description

Wire rope characteristics:
1. High dimensional accuracy, up to ±0.01mm;
2. Excellent surface quality and good brightness;
3. It has strong corrosion resistance, high tensile strength and fatigue resistance;
4. The chemical composition is stable, the steel is pure, and the content of inclusions is low; the packaging is intact and the price is favorable;
5. Galvanized steel wire rope is made of high-quality carbon structural steel, 60# 65# 70#, etc. The surface can be hot-dip galvanized or electro-galvanized.
6. Steel wire rope packaging: wooden wheel packaging, soft roll packaging.
7. Wire rope application: It has many characteristics such as high temperature resistance, good fatigue resistance, excellent breaking strength, long service life, and durability. It is widely used in coal, petroleum, metallurgy, chemical industry, ships, bridges, electric power, rubber, military industry, and tourism. , Water conservancy, light industry and other industries, products can be produced in accordance with international and foreign advanced standards such as ISO, BS, DIN, JIS, ABS, LR, etc.

Specification

Structure	17, 77（67+FC, 67+IWS,67+IWRC）, 119, 719(619+FC,619+IWS,619+IWRC), 19*7, etc.
Diameter	0.3mm –12mm
Material	Carbon steel 45#,55#,60#,70#
Standard	DIN, EN, ABS, BS, JIS, LR etc.
T/S	1570-1960Mpa
Tolerance	±3%

*17**
Diameter(mm)	GB/T 20118-2006 GB 8918-2006		Approx. weight KG/100M	EN 12385-4		Approx. weight KG/100M
	Min. Breaking Load（KN)			Min. Breaking Load（KN)
	1770 N/MM²	1960 N/MM²		1770 N/MM²	1960 N/MM²
0.3	0.09	0.10	0.05	—	—	—
0.4	0.15	0.17	0.08	—	—	—
0.5	0.24	0.26	0.13	—	—	—
0.6	0.34	0.38	0.19	0.308	0.347	0.18
0.7	0.47	0.52	0.25	—	—	—
0.8	0.61	0.68	0.33	0.547	0.617	0.32
1	0.96	1.06	0.52	0.855	0.963	0.50
1.2	1.38	1.52	0.75	—	—	—
1.5	2.15	2.38	1.17	1.92	2.17	1.13
1.8	3.10	3.43	1.68	—	—	—
2	3.82	4.23	2.08	3.42	3.85	2.01
2.5	5.97	6.62	3.25	5.34	6.02	3.14
3	8.60	9.53	4.68	7.69	8.67	4.52
4	15.29	16.93	8.32	13.70	15.40	8.03
5	23.90	26.46	13.00	21.40	—	12.60
6	34.41	38.10	18.72	30.80	—	18.10

*119**
Diameter(mm)	GB/T 20118-2006 GB 8918-2006		Approx. weight KG/100M	EN 12385-4		Approx. weight KG/100M
	Min. Breaking Load（KN)			Min. Breaking Load（KN)
	1770 N/MM²	1960 N/MM²		1770 N/MM²	1960 N/MM²
0.8	0.60	0.66	0.32	—	—	—
1	0.94	1.04	0.51	0.825	0.93	0.50
1.2	1.35	1.50	0.73	1.19	1.34	0.71
1.4	1.84	2.04	0.99	—	—	—
1.5	2.11	2.34	1.14	1.86	2.09	1.11
1.8	3.04	3.37	1.64	—	—	—
2	3.75	4.16	2.03	3.30	3.72	1.98
2.5	5.86	6.49	3.17	5.15	5.81	3.10
3	8.44	9.35	4.56	7.42	8.37	4.46
3.5	11.49	12.73	6.21	10.1	11.4	6.06
4	15.01	16.62	8.11	13.2	14.9	7.93
5	23.45	25.97	12.68	20.6	23.2	12.40
6	33.77	37.40	18.25	29.7	33.5	17.80
7	45.97	50.90	24.84	40.4	45.6	24.30
8	60.04	66.48	32.45	52.8	59.5	31.70

*77**
Diameter(mm)	GB/T 20118-2006 GB 8918-2006		Approx. weight KG/100M	EN 12385-4		Approx. weight KG/100M
	Min. Breaking Load（KN)			Min. Breaking Load（KN)
	1770 N/MM²	1960 N/MM²		1770 N/MM²	1960 N/MM²
1.2	0.92	1.01	0.56	0.99	1.10	0.56
1.4	1.25	1.38	0.76	1.35	1.49	0.76
1.5	1.43	1.58	0.87	1.55	1.71	0.87
1.8	2.06	2.28	1.25	2.23	2.46	1.25
2	2.54	2.81	1.55	2.75	3.04	1.55
2.5	3.97	4.40	2.42	4.29	4.75	2.42
3	5.72	6.33	3.48	6.18	6.84	3.48
3.5	7.78	8.62	4.74	8.41	9.32	4.74
4	10.17	11.26	6.19	10.99	12.17	6.19
4.5	12.87	14.25	7.84	13.91	15.40	7.84
5	15.89	17.59	9.68	17.17	19.01	9.68
5.5	19.22	21.29	11.71	20.77	23.00	11.71
6	22.88	25.33	13.93	24.72	27.38	13.93
7	31.14	34.48	18.96	33.65	37.26	18.96
8	40.67	45.03	24.77	43.95	48.67	24.77

*719**
Diameter(mm)	GB/T 20118-2006 GB 8918-2006		Approx. weight KG/100M	EN 12385-4		Approx. weight KG/100M
	Min. Breaking Load（KN)			Min. Breaking Load（KN)
	1770 N/MM²	1960 N/MM²		1770 N/MM²	1960 N/MM²
3	5.29	5.86	3.6	5.77	6.39	3.6
3.2	6.02	6.66	4.1	6.56	7.27	4.1
3.5	7.20	7.97	4.9	7.85	8.69	4.9
4	9.40	10.41	6.4	10.25	11.35	6.4
5	14.7	16.3	10.0	16.02	17.74	10.0
6	21.2	23.4	14.4	23.07	25.54	14.4
7	28.8	31.9	19.6	31.40	34.77	19.6
8	37.6	41.6	25.6	41.01	45.41	25.6
9	47.6	52.7	32.4	51.90	57.47	32.4
10	58.8	65.1	40.0	64.07	70.95	40.0
11	71.1	78.7	48.4	77.53	85.85	48.4
12	84.6	93.7	57.6	92.27	102.17	57.6
13	99.3	110.0	67.6	108.29	119.91	67.6
14	115.2	127.5	78.4	125.59	139.07	78.4
15	132.2	146.4	90.0	144.17	159.64	90.0
16	150.4	166.6	102.4	164.03	181.64	102.4

*197**
Diameter(mm)	GB/T 20118-2006 GB 8919-2006		Approx. weight KG/100M	EN 12385-4		Approx. weight KG/100M
	Min. Breaking Load（KN)			Min. Breaking Load（KN)
	1770 N/MM²	1960 N/MM²		1770 N/MM²	1960 N/MM²
3	5.2	5.8	3.9	5.2	5.8	3.6
4	9.3	10.3	6.9	9.3	10.3	6.4
5	14.5	16.1	10.8	14.5	16.1	10.0
6	20.9	23.1	15.5	20.9	23.1	14.4
7	28.4	31.5	21.1	28.4	31.5	19.6
8	37.2	41.1	27.5	37.2	41.1	25.7
9	47.0	52.1	34.8	47.0	52.1	32.5
10	58.1	64.3	43.0	58.1	64.3	40.1
11	70.2	77.8	52.0	70.2	77.8	48.5
12	83.6	92.6	61.9	83.6	92.6	57.7
13	98.1	109	72.7	98.1	108.6	67.8
14	114	126	84.3	114	126	78.6
15	131	145	96.8	131	145	90.2
16	149	165	110.1	149	165	102.7

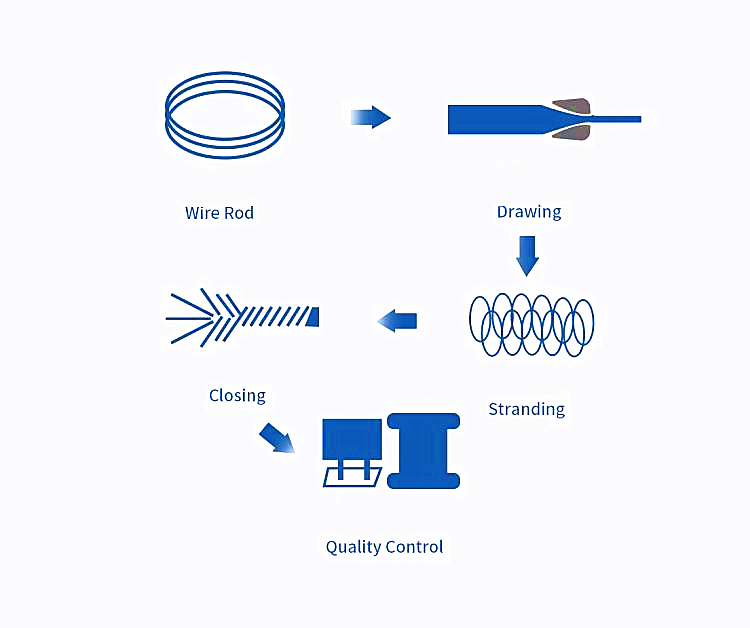

Production Process

Applications

1. Security seals.

2. Towing, pulling, strapping.

3. Fence, greenhouse, door pipe,green house.

4. Low pressure liquid, water, gas, oil, line pipe.

5. For both indoor and outdoor the building construction.

6. Widely used in scaffolding construction which is much cheaper and convenient.

Packing

Packing: Wooden reel, iron reel, plastic reel, flexible reel,custom packaging.

Shipping: We support international express for your sample order: Like TNT, DHL, FedEx, UPS, EMS, etc. We shipping the bulk order by Sea, by train, etc.

Produce time: Within 3-15 working days.
